Publisher -> Subscriber

What's that?

Publisher-subscriber is a design pattern commonly used in game development. This pattern allows an object to publish information to other objects that subscribe to the object. Objects that publish information are called "publishers", while objects that receive information are called "subscribers".

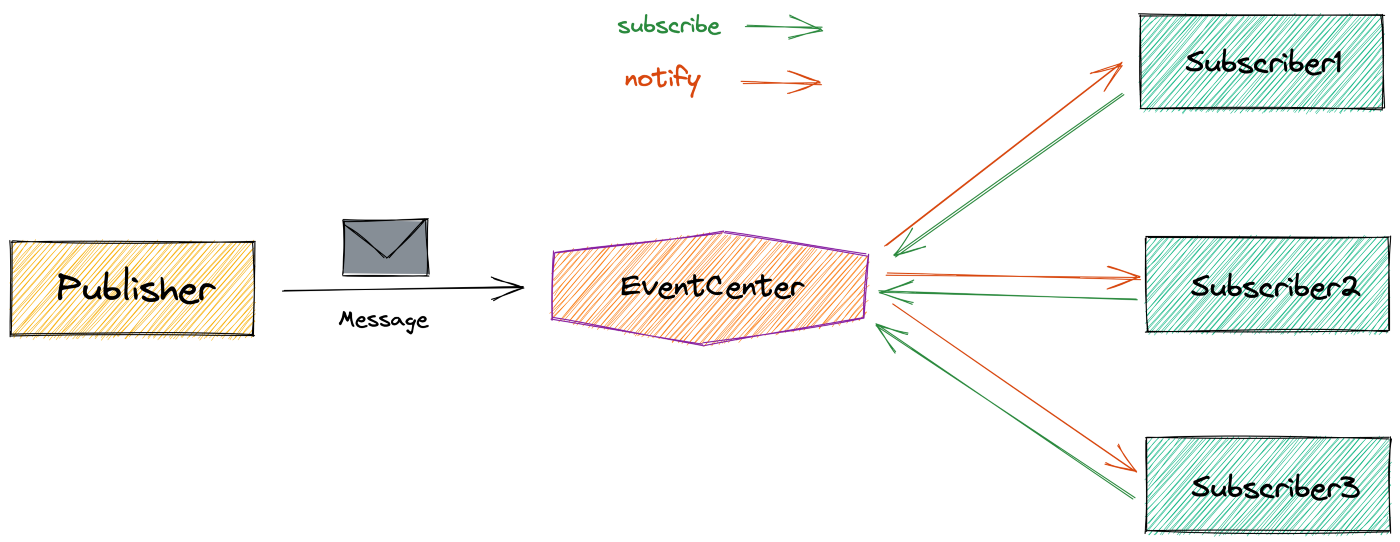

PubSub illustration

Publisher-subscribers provide an advantage in game development because they allow communication between isolated objects. This is especially useful if the objects have dependencies on one another, but there is no need to know in detail how the other objects work.

A simple example is if in your game there is an event which if the event is executed, then many other elements in your game will react to that event. For example, when the player character dies, you want to play the game over audio, display the game over screen, submit the player's score to the leaderboard, etc. You can run all these methods in one script but it will create coupling and dependencies in your script. This is where this pattern is used.

You just need to send an event/message from your player script when the player dies, and you can just make the script that needs to react to the event to become a subscriber.

Implementation

GameEvent.cs

Gamepangin has provided an event that accepts a string as a parameter in the GameEvent.cs script If you only need to send an event that only contains the string: eventName, you can immediately use this GameEvent. The following is the contents of GameEvent.cs

namespace Gamepangin
{
    public struct GameEvent
    {
        public string eventName;

        public GameEvent(string newName)
        {
            eventName = newName;
        }

        private static GameEvent gameEvent;

        public static void Trigger(string newName)
        {
            gameEvent.eventName = newName;
            EventManager.TriggerEvent(gameEvent);
        }
    }
}

Trigger an Event

There are 2 ways to send an event, namely by EventManager.TriggerEvent or directly via the static Trigger method of an event struct.

private void Die()
{
    EventManager.TriggerEvent(new GameEvent("Player Dead"));
    // Same as this one
    GameEvent.Trigger("Player Dead");
}

Subscribe to an Event

So that your script can find out what specific events are sent, you must subscribe to the event by adding the IEventListener interface and also don't forget to tell the EventManager to subscribe/unsubscribe this component.

public class AudioManager : MonoBehaviour, IEventListener<GameEvent>
{
    private void OnEnable()
    {
        // Subscribe
        EventManager.AddListener<GameEvent>(this);
    }

    private void OnDisable()
    {
	// Unsubscribe
	EventManager.RemoveListener<GameEvent>(this);
    }

    public void OnEvent(GameEvent gameEvent)
    {
	// Game Event is received, filter it by eventName
	if(gameEvent.eventName == "Player Dead")
	{
	    // Do something when player dead
	}
    }
}

Create your own event type

You can see the GameEvent example above to create your own event that can receive the parameters you want, here is an example of ApplicationEvent.cs which is included in Gamepangin which you can also use to detect whether your game is running in the background or not

namespace Gamepangin
{
    public enum AppEventType
    {
        OnApplicationBackground,
        OnApplicationFocus,
        OnApplicationQuit
    }
    public struct ApplicationEvent
    {
        public AppEventType appEvent;

        public ApplicationEvent(AppEventType newAppEvent)
        {
            appEvent = newAppEvent;
        }

        private static ApplicationEvent e;

        public static void Trigger(AppEventType newAppEvent)
        {
            e.appEvent = newAppEvent;
            EventManager.TriggerEvent(e);
        }
    }
}
